R-HPTII-ZF Zinc Flake Throughbolt

Throughbolt anchor with corrosion-resistant coating for cracked and non-cracked concrete

Features and benefits

  • New generation of throughbolt with unique corrosion-resistant coating
  • High performance in cracked and non-cracked concrete confirmed by ETA Option 1
  • Highest quality ensures maximum load capability
  • For applications requiring fire resistance up to 120 minutes
  • Suitable for reduced embedment to avoid contact with reinforcement
  • Embedment depth markings help to ensure precise installation of the anchor
  • Design of R-HPTII allows drilling and installing directly through the fixture and helps to reduce installation time
  • Fire resistant
  • Anchors can be used in earthquake risk zones - seismic category C1 and C2

Product information

Size

Product Code

Anchor

Fixture

Diameter

Length

Max. thickness tfix for:

Hole diameter

d

L

hnom,red

hnom,std

df

[mm]

[mm]

[mm]

[mm]

[mm]

M8

R-HPTIIZF-08065/15

8

65

15

-

9

R-HPTIIZF-08080/15

8

80

30

15

9

R-HPTIIZF-08100/35

8

100

50

35

9

R-HPTIIZF-08115/50

8

115

65

50

9

M10

R-HPTIIZF-10065/5

10

65

5

-

11

R-HPTIIZF-10080/20

10

80

20

-

11

R-HPTIIZF-10095/15

10

95

35

15

11

R-HPTIIZF-10115/35

10

115

55

35

11

R-HPTIIZF-10130/50

10

130

70

50

11

M12

R-HPTIIZF-12080/5

12

80

5

-

13

R-HPTIIZF-12100/5

12

100

25

5

13

R-HPTIIZF-12120/25

12

120

45

25

13

R-HPTIIZF-12135/40

12

135

60

40

13

R-HPTIIZF-12150/55

12

150

75

55

13

M16

R-HPTIIZF-16105/10

16

105

10

-

18

R-HPTIIZF-16125/5

16

125

25

5

18

R-HPTIIZF-16140/20

16

140

40

20

18

R-HPTIIZF-16180/60

16

180

80

60

18

R-HPTIIZF16220/100

16

220

120

100

18

M20

R-HPTIIZF-20125/5

20

125

5

-

22

R-HPTIIZF-20160/20

20

160

40

20

22

R-HPTIIZF-20200/60

20

200

80

60

22

Base material

  • Cracked concrete C20/25-C50/60

    Cracked concrete C20/25-C50/60

  • Non-cracked concrete C20/25-C50/60

    Non-cracked concrete C20/25-C50/60

  • Reinforced concrete

    Reinforced concrete

  • Unreinforced concrete

    Unreinforced concrete

For use also with

  • Natural Stone (after site testing)

    Natural Stone (after site testing)

Applications

  • Cladding restraints
  • Consoles
  • Barriers
  • Structural steel
  • Curtain walling
  • Handrails
  • Heavy Plant
  • Balustrading
  • Passenger lifts
  • Facades
  • Racking systems
  • Platforms
  • Fencing & gates manufacturing and installation

Installation guide

Installation guide
Installation guide
Installation guide
Installation guide
Installation guide

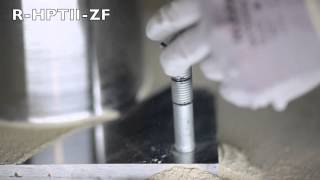

  1. Drill a hole of required diameter and depth
  2. Clear the hole of drilling dust and debris (using blowpump or equivalent method)
  3. Lightly tap the throughbolt through the fixture into hole with a hammer, until fixing depth is reached
  4. Tighten to the recommended torque

Installation data

Size

M8

M10

M12

M16

M20

Thread diameter

d

[mm]

8

10

12

16

20

Hole diameter in substrate

d0

[mm]

8

10

12

16

20

Installation torque

Tinst

[Nm]

10

20

40

100

180

Wrench size

Sw

[mm]

13

17

19

24

30

External diameter of washer

[mm]

16

20

24

30

37

STANDARD EMBEDMENT DEPTH

Min. hole depth in substrate

h0,s

[mm]

65

79

90

110

129

Min. installation depth

hnom,s

[mm]

55

69

80

100

119

Min. substrate thickness

hmin,s

[mm]

100

120

140

170

200

Min. spacing (Non-cracked concrete)

smin, s

[mm]

50

70

90

160

180

Min. spacing (Cracked concrete)

smin, s

[mm]

50

70

90

160

180

Min. edge distance (Non-cracked concrete)

cmin, s

[mm]

40

50

65

85

100

Min. edge distance (Cracked concrete)

cmin, s

[mm]

40

45

65

90

100

REDUCED EMBEDMENT DEPTH

Min. hole depth in substrate

h0,r

[mm]

50

59

70

90

110

Min. installation depth

hnom,r

[mm]

40

49

60

80

100

Min. substrate thickness

hmin,r

[mm]

100

100

100

130

160

Min. spacing (Non-cracked concrete)

smin,r

[mm]

55

75

150

190

300

Min. spacing (Cracked concrete)

smin,r

[mm]

55

75

150

190

300

Min. edge distance (Non-cracked concrete)

cmin,r

[mm]

45

60

70

100

160

Min. edge distance (Cracked concrete)

cmin,r

[mm]

40

50

80

110

120
